Lofrans Project X2 Windlass Aluminium 1500W 12V 10ISO Lofrans’

Description

The X-Series Vertical Windlass

The X-Series vertical windlasses are suitable for both sailing and motorboats ranging from 6 to 27 meters. Various motor options are available to fully meet your needs.

Key Features of the X2 Series:

• Body & Gypsy: Made from chrome-plated bronze.
• Specially Designed Waterproof Bearings: Stainless steel bearings at the base of the windlass.
• Optional Drum Version: Available with or without a drum.
• Independent Operation: Separate operation for the gypsy and drum.
• Combination Gypsy: Compatible with both rope and chain.
• Manual Chain Release: Allows manual release of the chain.
• Chain Positioning: Accurate chain placement in the gypsy through a guiding arm.
• Pre-Installed Chain Counter Sensor: Integrated sensor for chain length monitoring.
• Heavy-Duty Electric Motor: IP67-rated motor for enhanced durability.
• Marine-Grade Gearbox: Made from anodized aluminum for maritime applications.

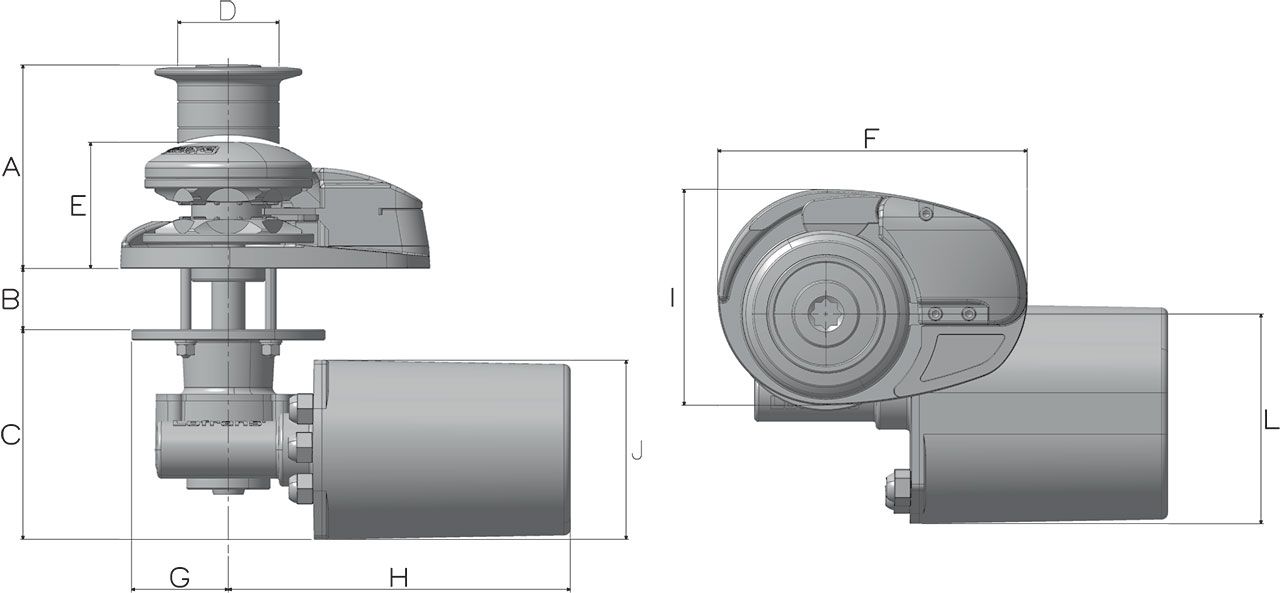

Dimensions:

• A: 153 mm
• B: 25-40 mm
• C: 155 mm
• D: 76 mm
• E: 95 mm
• F: 232 mm
• G: 73 mm
• H: 260 mm
• I: 162 mm
• J: 134 mm
• L: 165 mm
