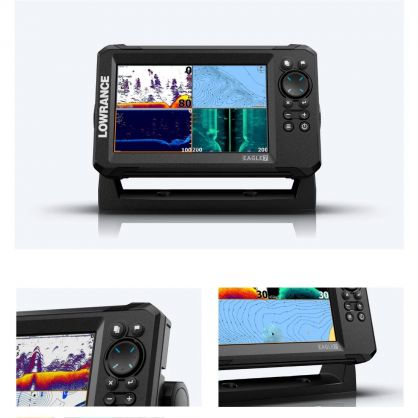

Lowrance Eagle 7″ Depth Gauge with 50/200 HDI Sensor

Description

Key Features:

50/200 HDI LOW/HIGH converter with Autotuning sounder

World base map

IPS screen, visible from all angles, even with polarized glasses

New reliable swivel connection system for easy installation on any boat or kayak

SD card slot for software updates, Genesis Live recording and mapping plugins.

See fish hiding in cover with the FishReveal™ feature

Increase contrast and visibility with brand new Imaging color palettes

Specifications:

Resolution 800 x 480

HDI Converter Selection Guide

Lowrance brand

Screen Size 7″

Eagle series

Eagle 7 model

Voltage Description 12V DC (10.8-17VDC)

Electrical fuse Recommended rated fuse: 3A

Height Description 139.8mm (5.5″)

Width 225.9mm (8.89″)

Depth 88.5 (3.48)

Weight 0.67 kg (1.48 lb)

Consumption Max: 550 mA @ 12 V DC with backlight on full / Min: 250 mA @ 12 V DC with backlight off / Typical: 550 mA @ 12 V DC with backlight on full

Operating Temperature 5°F to 131°F (-15°C to 55°C )

Viewing Angle: 80° up/down, 80° left/right

1 year warranty + 4 additional years of upgrade options (total 5 years)

Mounting description Bracket for Gimbal or dashboard mount
