Raymarine Element RV-320 Thru-Hull Transducer Set / 20° deadrise angle

Description

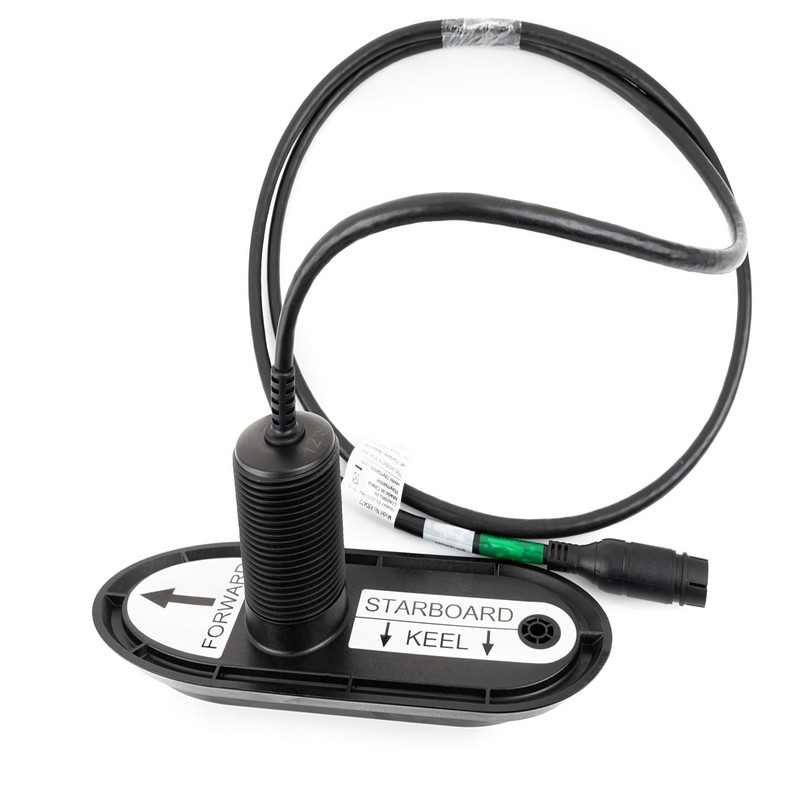

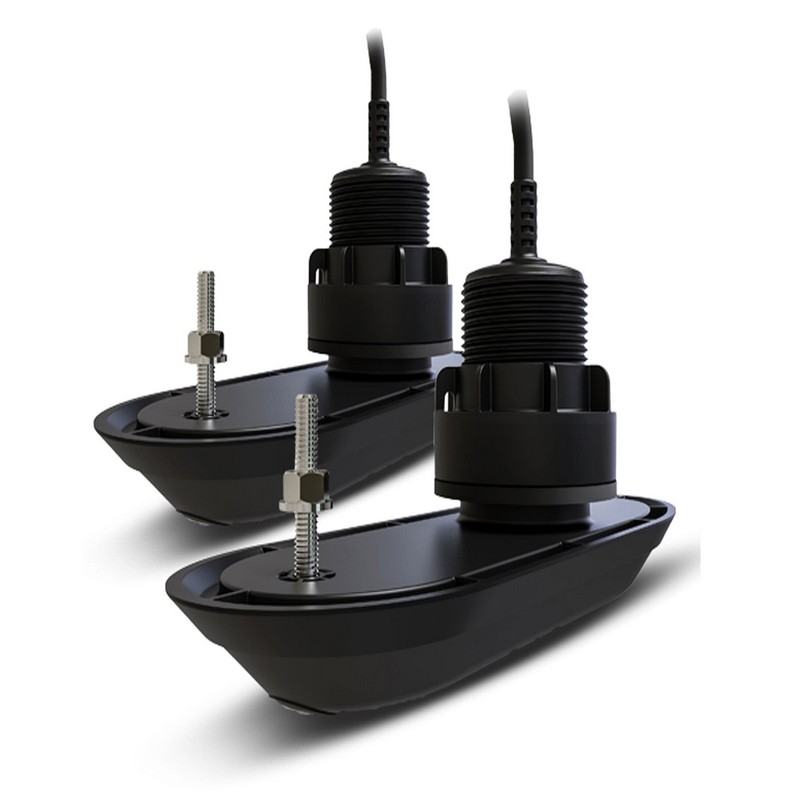

RV-320 thru-hull transducer set for direct connection to your Raymarine AXIOM multifunction display. The RV-320 plastic thru-hull transducer allows you to easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar. The set contains a pair of transducers, one for starboard and one for port side.
The plastic RV-320 thru-hull transducer is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. In addition, the encoder measures the water temperature and transmits the data to the AXIOM for display.
Due to a built-in course/depth reference system (AHRS), which stabilizes the sonar images, you will always receive crisp images, even in more moderate swell.

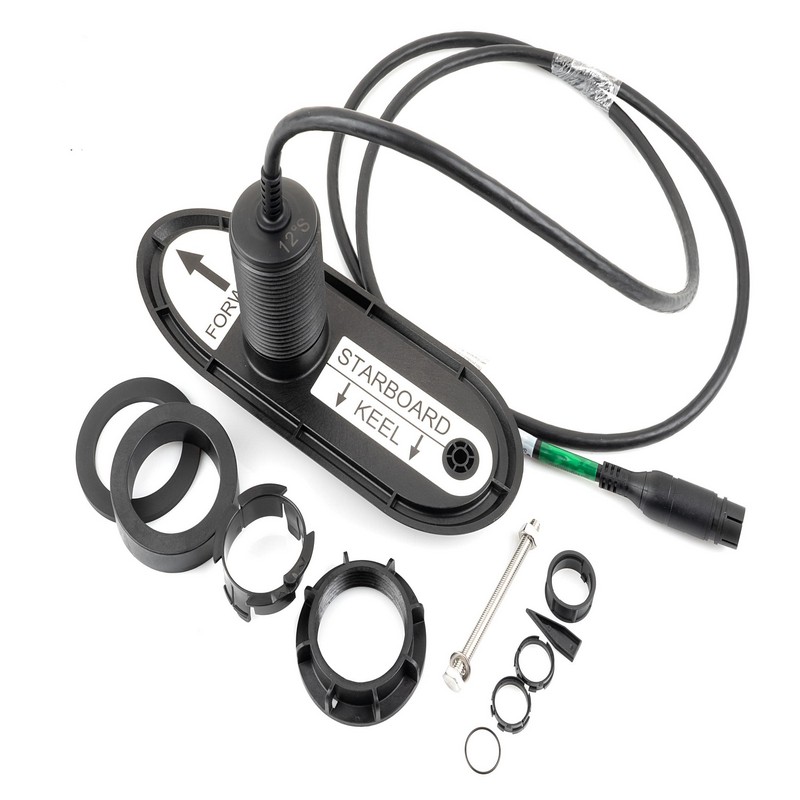

The thru-hull transducers are mounted through a hole in the fuselage with a supported deadrise of 15 – 25°. The RV-320 comes with a 2m Y-cable, an 8 meter extension cable and all mounting parts.
