Raymarine Element RV-420 Stainless Steel Through-Hull Transducer Set / 20° deadrise angle

Description

Raymarine’s RV420 all-in-one through-hull transducer is a 4-channel, broadband CHIRP transducer featuring the following technologies:

• DownVision
• SideVision
• High frequency CHIRP
• RealVision 3D Sonar
• Water temperature sensor

Enjoy crystal clear images even during waves, swells and manoeuvres thanks to the course/position reference system, which stabilises the sonar images and automatically compensates for ship movement.

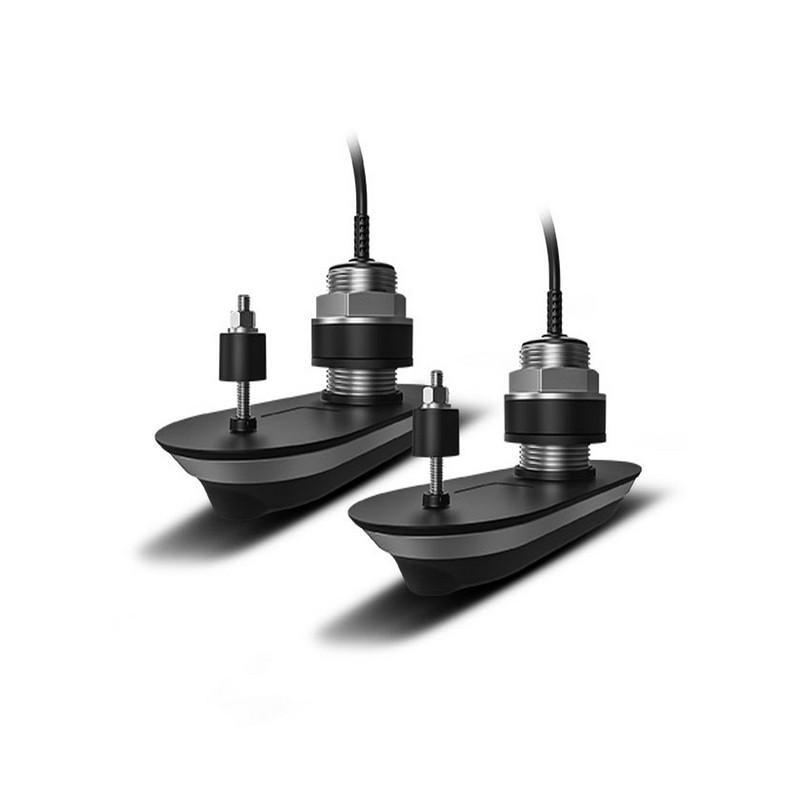

The Raymarine RV-420 through-hull transducer system package includes a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 14° to 26°. This eliminates the need for fairing blocks. The low-profile design moves effortlessly through the water without causing drag or cavitation. This RV-420 system even works great on trailered boats.

The RV-420 system features a rugged, stainless steel through-hull housing suitable for GRP, wood or metal hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards to ensure full 180° underwater coverage even for boats with deep keels or other underwater protrusions. Each transducer comes with 2 meter of cable, together with the Y-cable and the 8 meter extension cable, the total length is 10 meters.

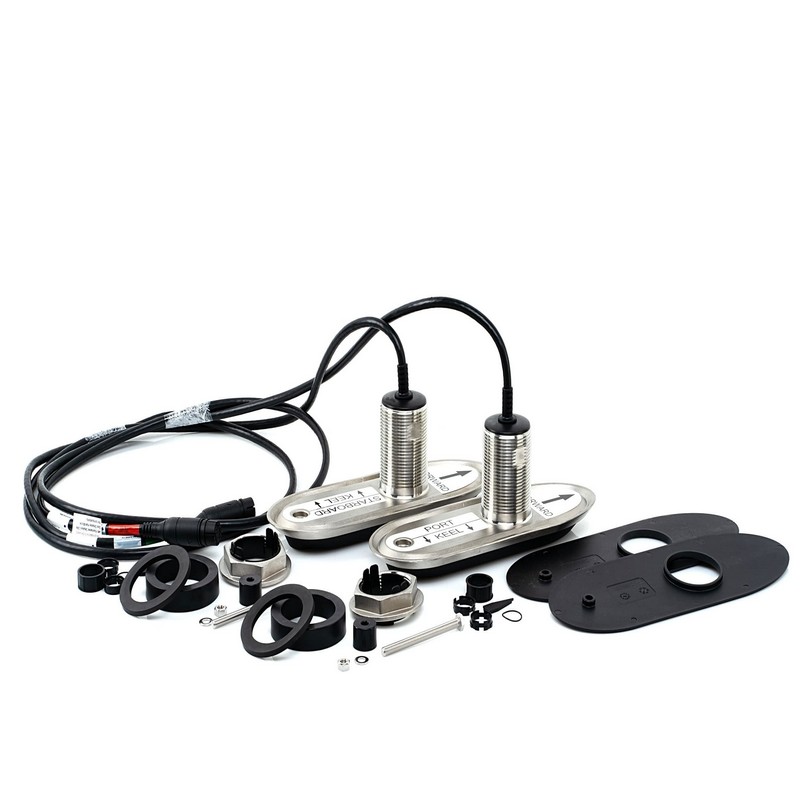

Included:

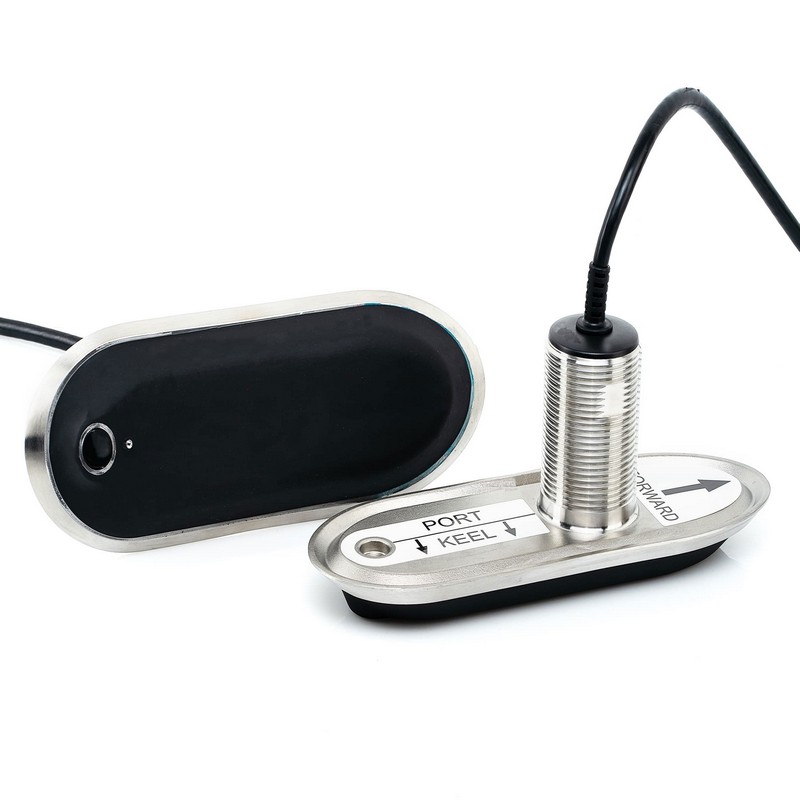

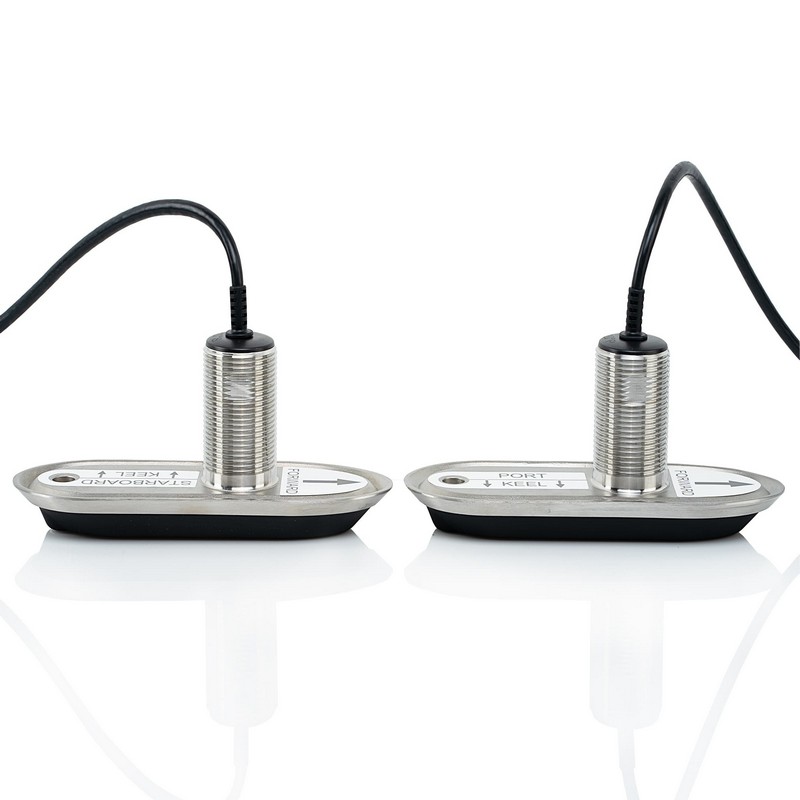

• RV-420P port transducer with 2 metre cable
• RV-420S starboard transducer with 2 metre cable

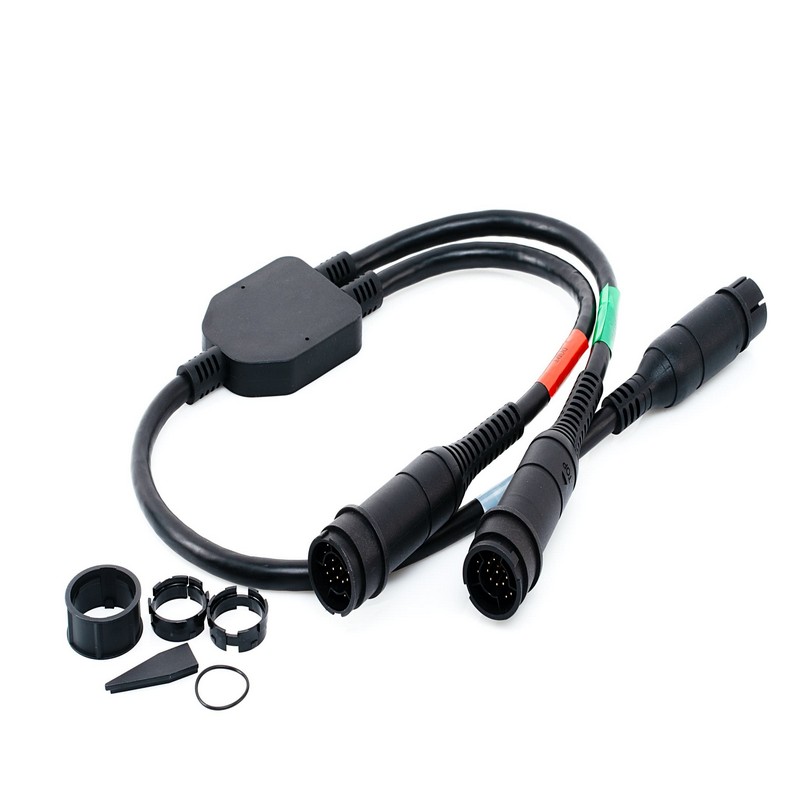

• RealVision 3D transducer Y-cable

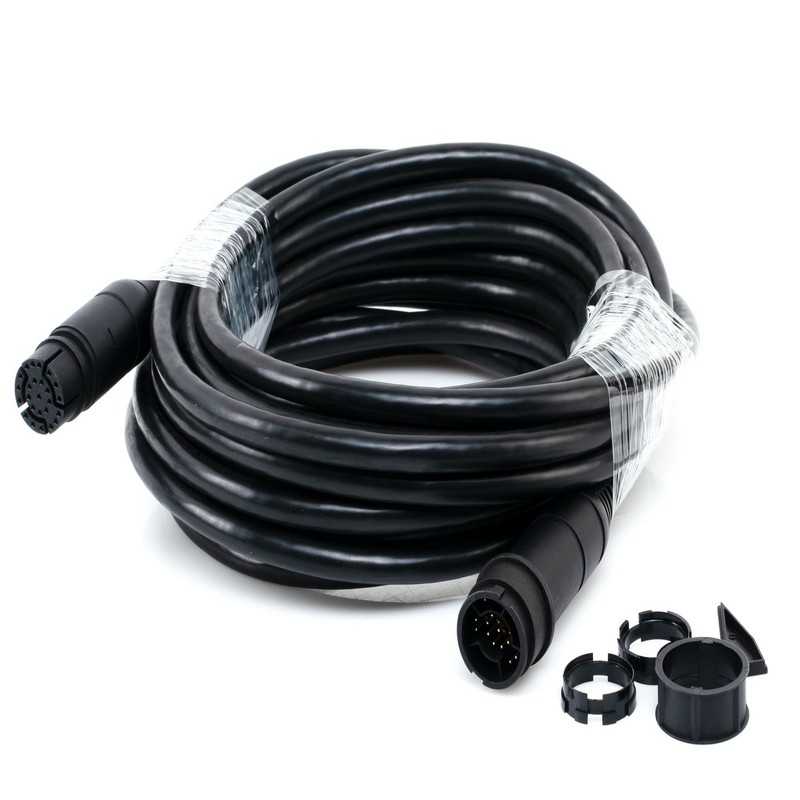

• RealVision 3D transducer extension cable, 8 metres (26 feet)
• Screw kit
• Installation instructions
