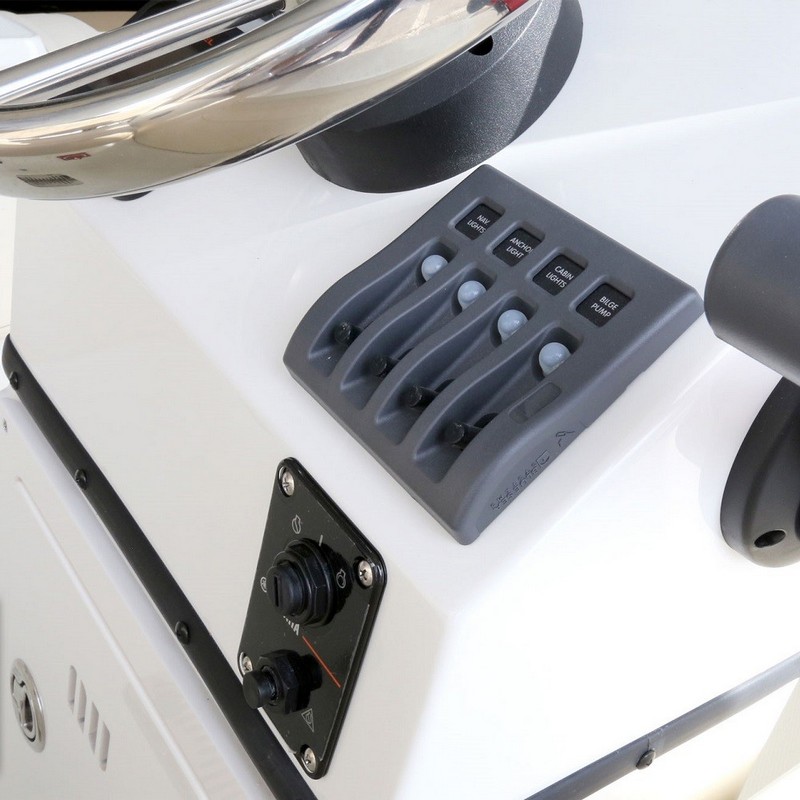

TABLE OF 4 SEATS BLUE SEA GREY THERMAL FUSES 4374
159,58€
Description
Description
- Rated IP67-temporary immersion for 30 minutes
- Designed for flybridge and open cockpit applications
- Independent label backlighting allows switching and dimming
- Compatible with all Blue Sea Systems Digital Dimmers
- Available in 4 and 6 circuit models
- Each panel can be mounted in four different orientations
- Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.
|
4 |
|
|
Nominal Voltage |
12V DC |
|
Circuit Protection |
Circuit Breaker |
|
Maximum Amperage |
15A @ 12V DC (per circuit) |
|
Panel Cumulative Rating |
45A |
|
Backlit Label |
Green LED |
|
Backlighting Amperage |
10mA /Illuminated Circuit |
|
Backlighting Voltage |
12 or 24V DC |
|
Material |
Reinforced Polycarbonate |
|
Height |
4.30in (109.22 mm) |
|
Width |
4.25in (107.95 mm) |
|
Depth |
3.50in (88.9 mm) |
|
Weight |
0.97lb (0.44 kg) |
Additional information
Additional information
| Weight | 0,4 kg |
|---|
